SPECIFICATIONS

AC Charging Current(Max): 60Amp

Brand Name: PowMr

Certification: CE

Feature 1: MPPT 3KW Hybrid Inverte

Feature 2: 3KW Pure Sine Wave Inverter

Feature 3: 3000W 24V Solar Inverter

Feature 4: MPPT 80A Solar Charger

Hign-concerned Chemical: None

Input Voltage: Sinusoidal(utility or generator)

Is Smart Device: Yes

Max Charging Current: 80Amp

Model Number: POW-HVM3.2H-24V-N

Nominal DC Input Voltage: 24Vdc

Nominal Input Voltage: 230Vac

Origin: Mainland China

Output Current: MPPT 80A

Output Frequency: 50Hz/60Hz(Auto sensing)

Output Power: 3000W

Output Type: SINGLE

Output Voltage Waveform: Pure Sine Wave

Rated Output Power: 3200VA/3000W

Size: 348X270X95mm

Weight: 6.5KG

is_customized: Yes

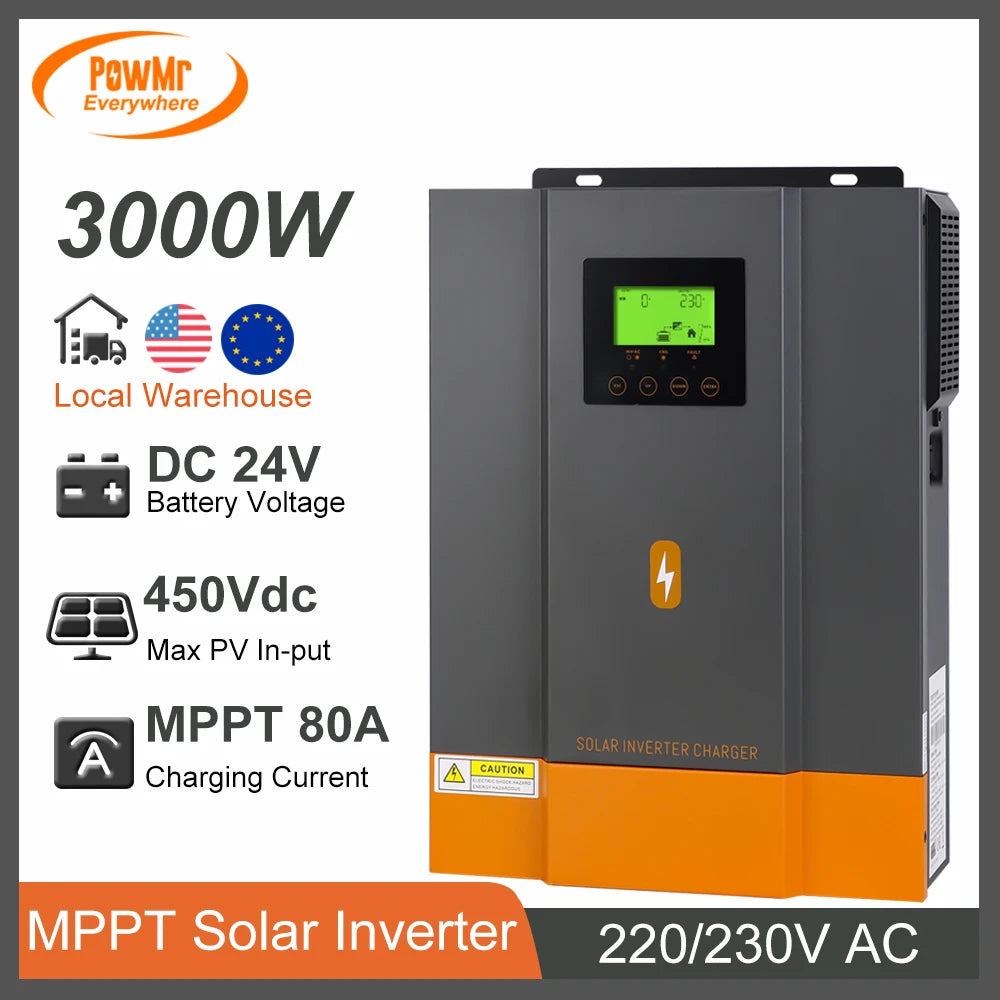

PowMr 3000W 80A MPPT Solar Charge Controller DC 24V to 230V AC Max Solar Panel Input 450V Pure Sine Wave Hybrid Inverter Fit Lifepo4

To European Union Countries: You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, that you don't need to pay the additional fees. when you order before, please contact us first, thank you.

Introduction

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.

Product Features

1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function

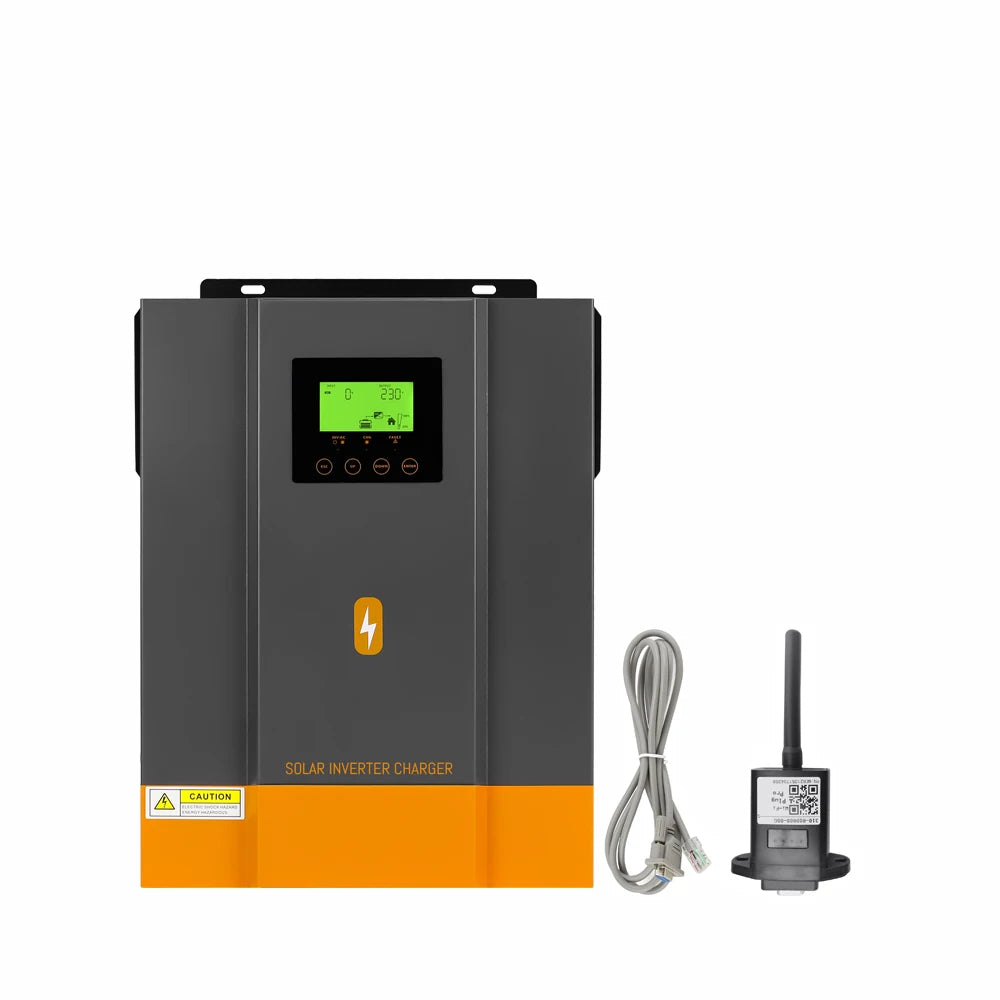

10.WIFI/GPRS(Option)
11.Can connect to lithium battery

Basic System Architecture

The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
1.Generator or Utility.
2.PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.

Specification

Product Overview

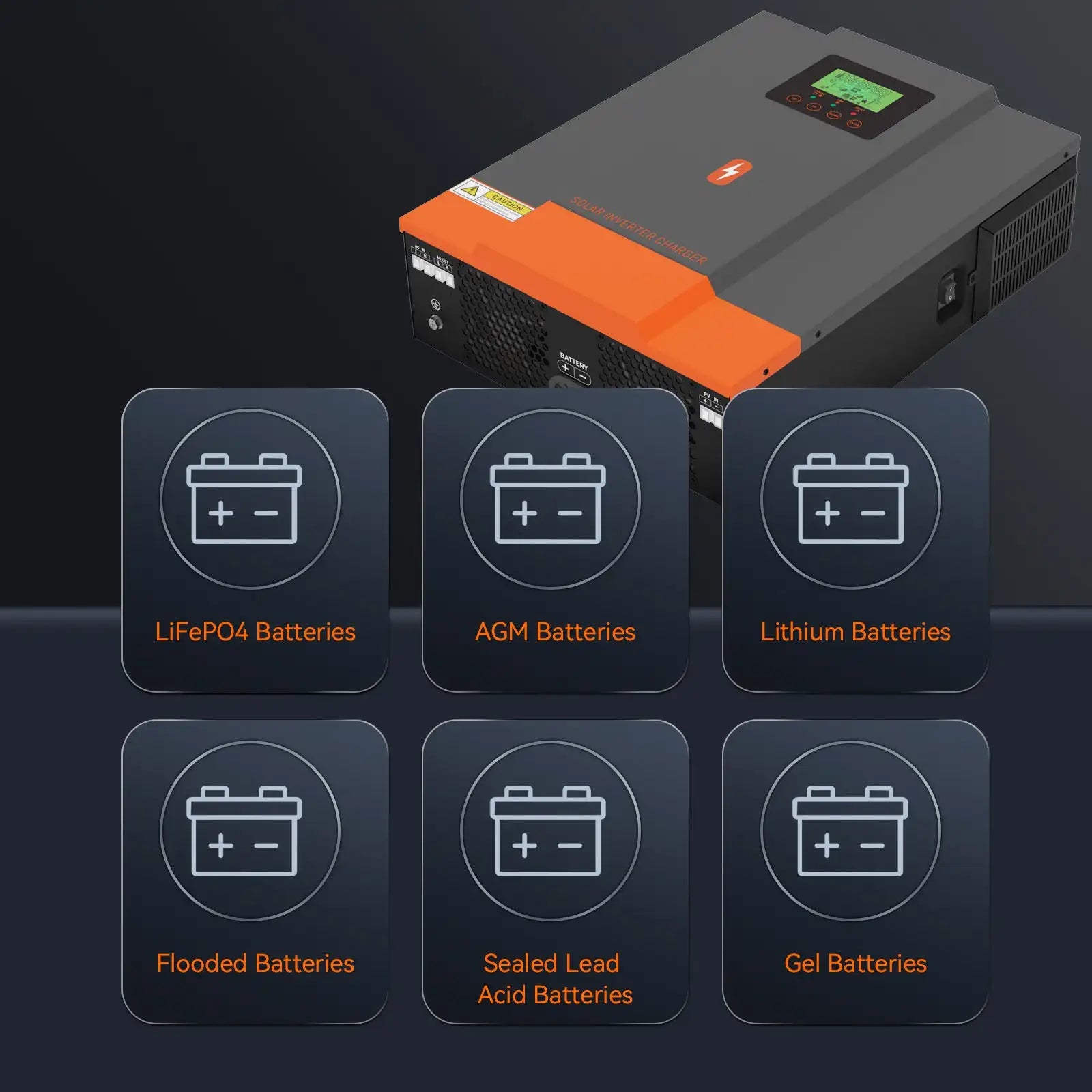

MPPT Charge Controller Compatible with Various Batteris

With Innovative MPPT technology, this controller charges 24V lead-acid batteries (Flooded, AGM, Sealed Lead Acid, Gel), LiFePO4 batteries and lithium batteries (in User Mode) with 3000W max PV array power. It accepts power from solar panels, the grid, or a generator with a 30-400V DC input range.

All-Round Protections

The PowMr inverter charger provides four charging stages, safeguards against overload, over-temperature, and short circuits, and features automatic restart. It includes intelligent fans that enhance battery performance, reduce heat, and increase system longevity. A cold start function is also available.

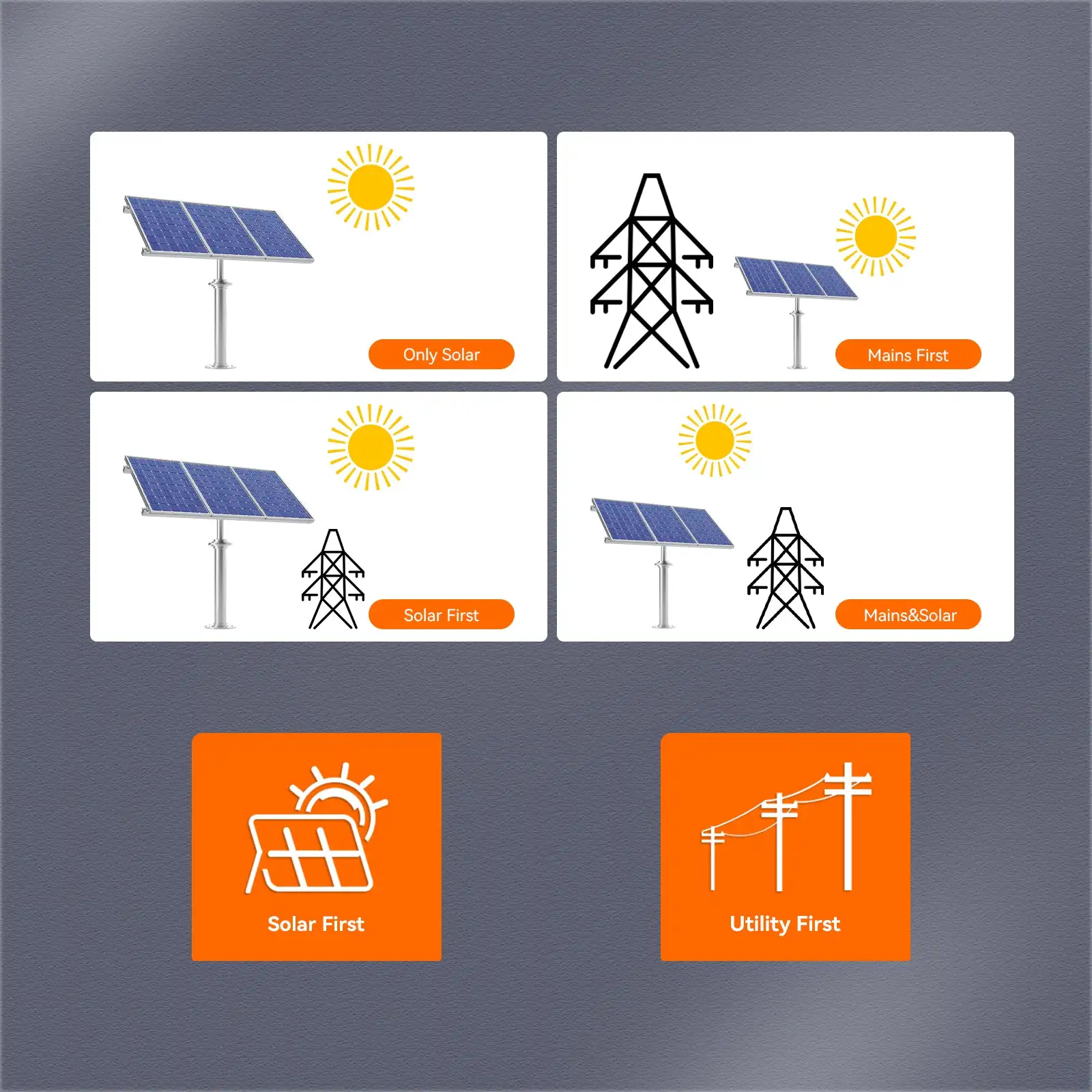

Versatile Working Modes
Customize the priority of power inputs and outputs with 4 charging modes(Only Solar, Mains First, Solar First, Mains&Solar) and 2 output modes(Solar First, Utility First). This inverter charger offers efficient power management for personalized energy consumption.

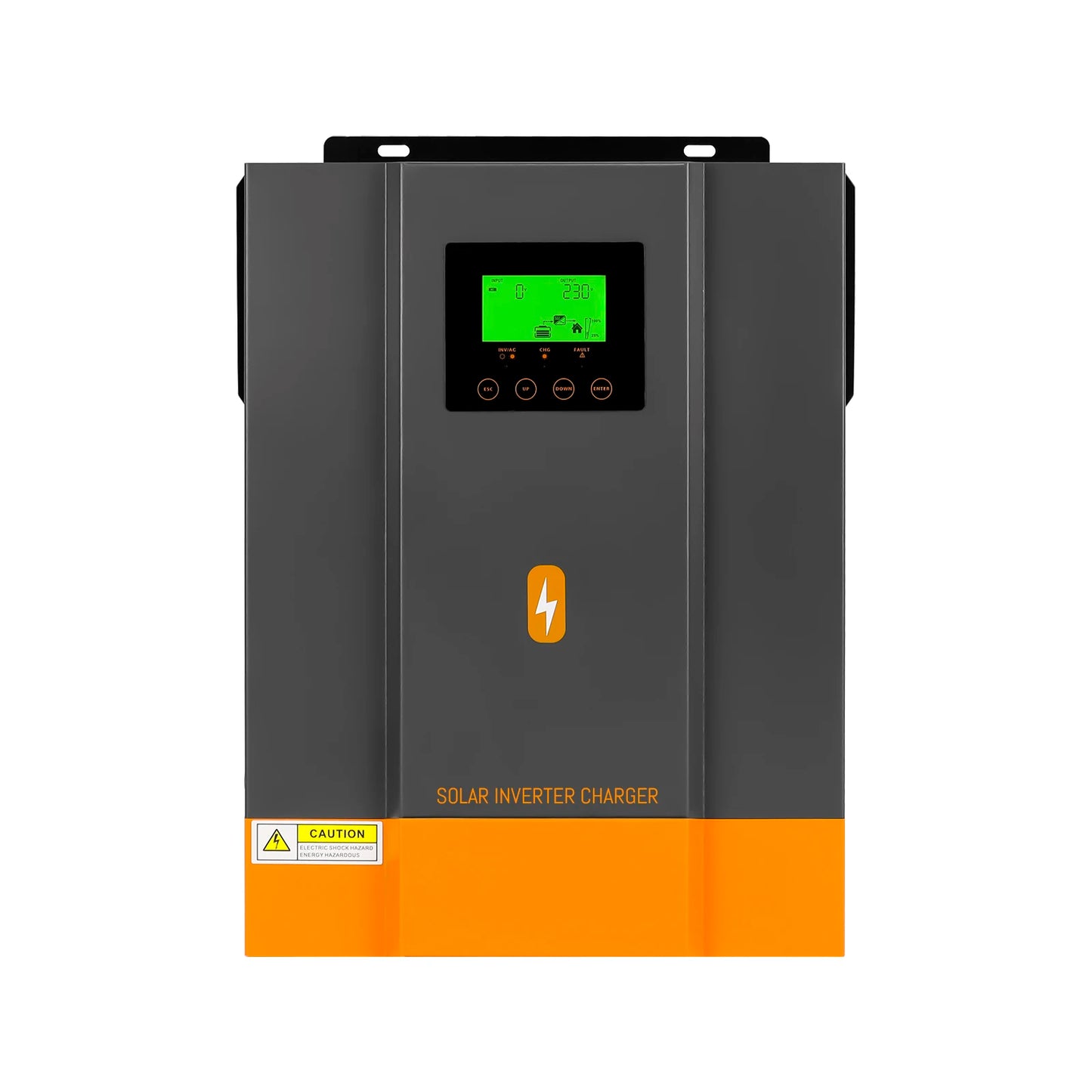

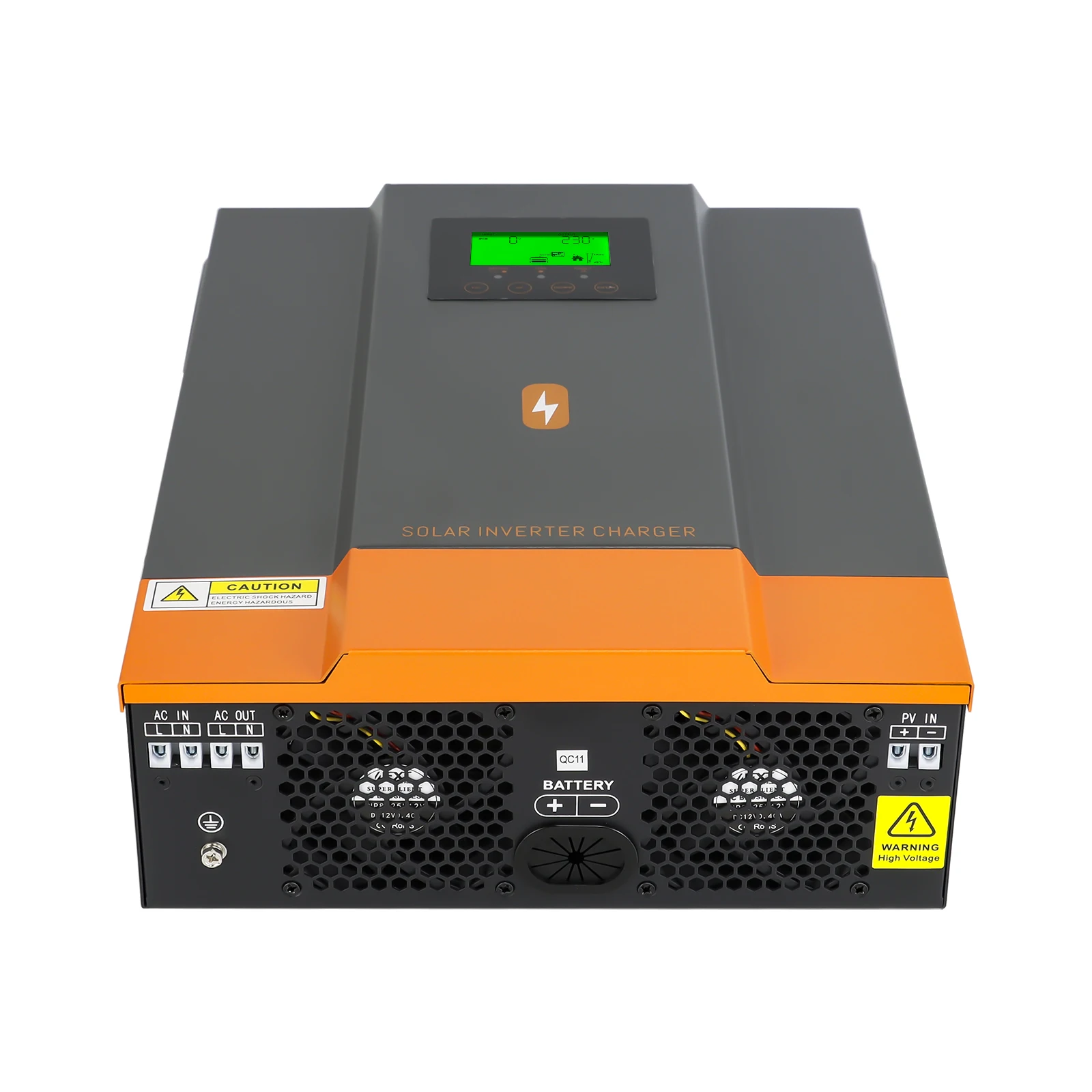

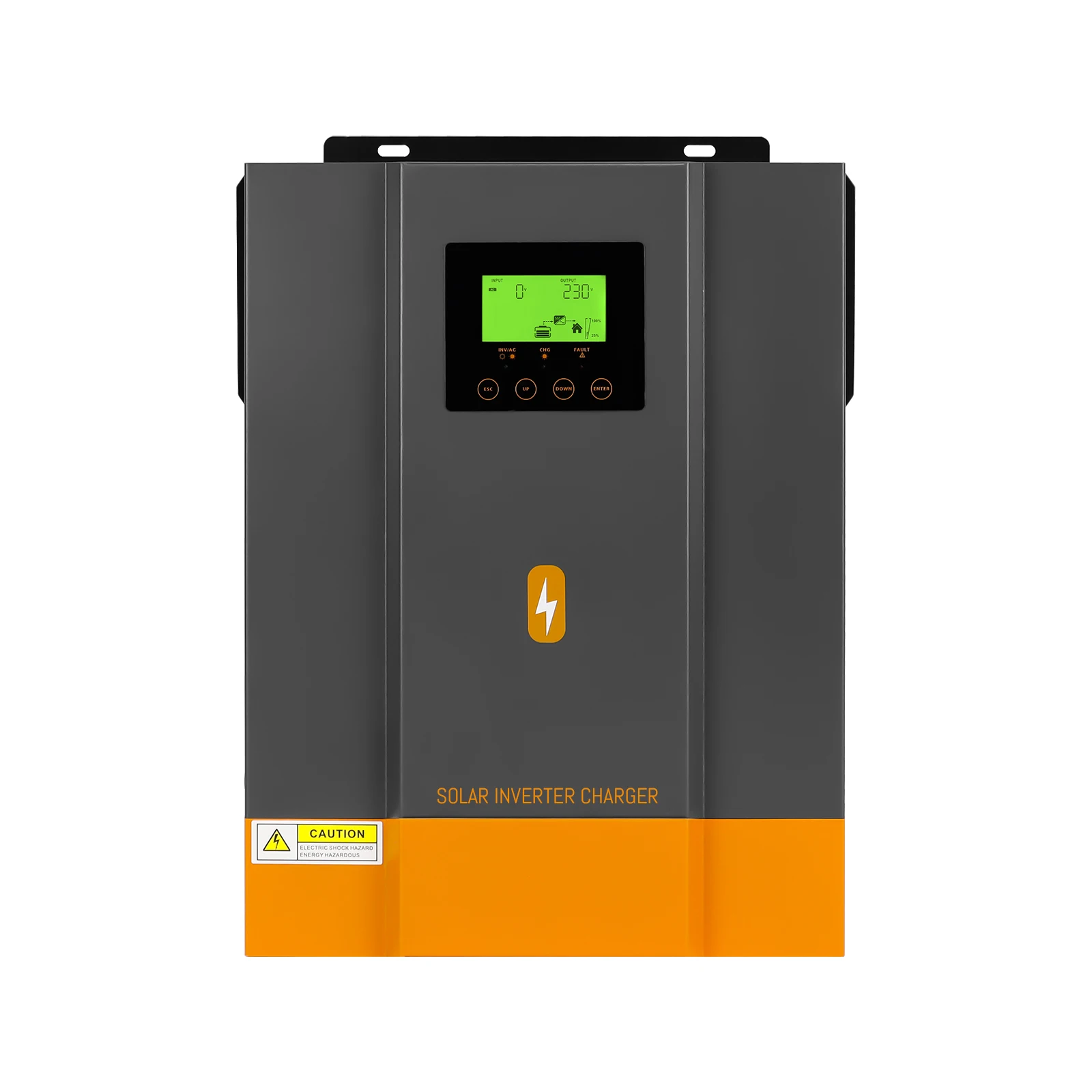

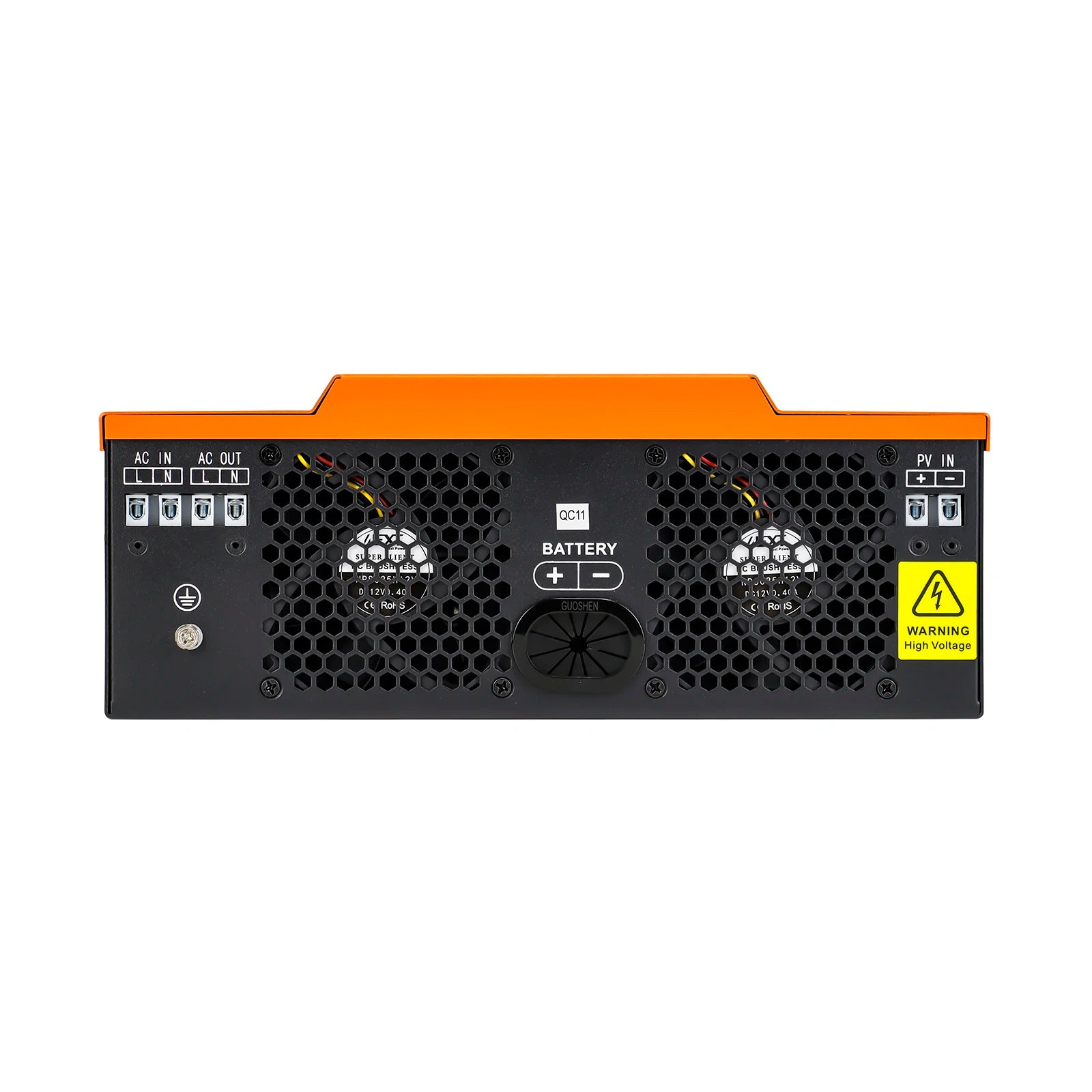

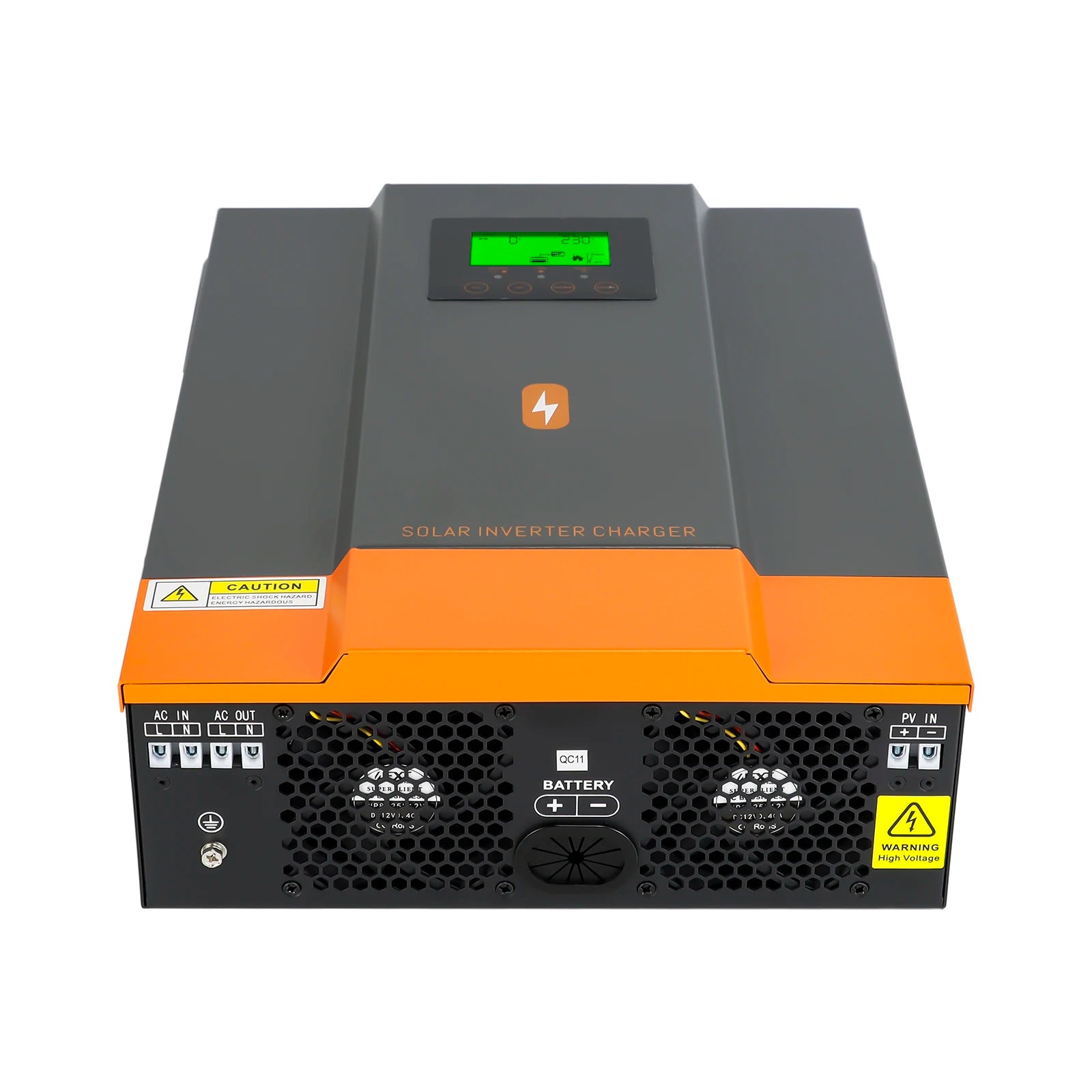

Product Picture
