PowMr MPPT PWM 20A 30A 40A Solar Charge Controller 12V 24V Auto Solar Panel Regulator Solar Battery Charger Dual Timer

£15.05 GBP

~~£15.05 GBP~~ £15.05 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Current 20A 40A 30A

Quantity

SPECIFICATIONS

Application: Charger Controller,Solar System Controller,Voltage Controller,Lighting Controller

Battery Voltage: 12V/24V Auto

Brand Name: PowMr

Certification: CE

Charging Mode: Compatible MPPT+PWM

Display: LCD

Feature: 0 Layer

Load Control Mode: Dual Timer

Load Output Voltage: Same with battery voltage

Maximum Current: 20A 30A 40A

Model Number: T20 T30 T40

Origin: Mainland China

Protection: Over-charge and discharge protection

is_customized: Yes

PowMr MPPT PWM 20A 30A 40A Solar Charge Controller 12V 24V Auto Solar Panel Regulator Solar Battery Charger Dual Timer

Introduction:

This is a compatible MPPT charge controller PWM intelligent/efficient/ energy saving, It not only has efficient MPPT controller charging function to automatically track the maximum power point,10%-30% higher than the ordinary controller chargingefficiency,also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.

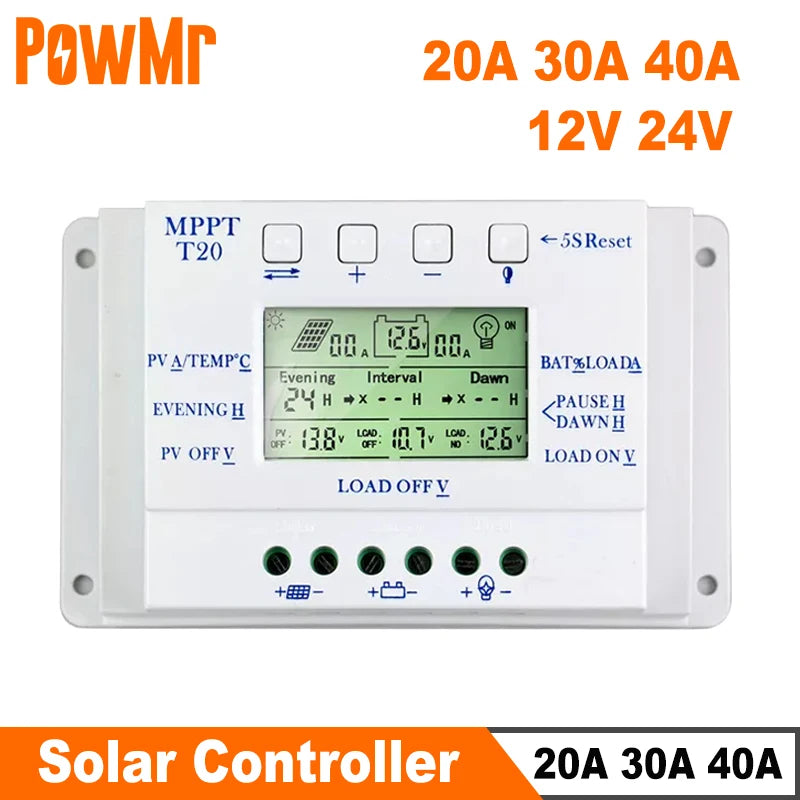

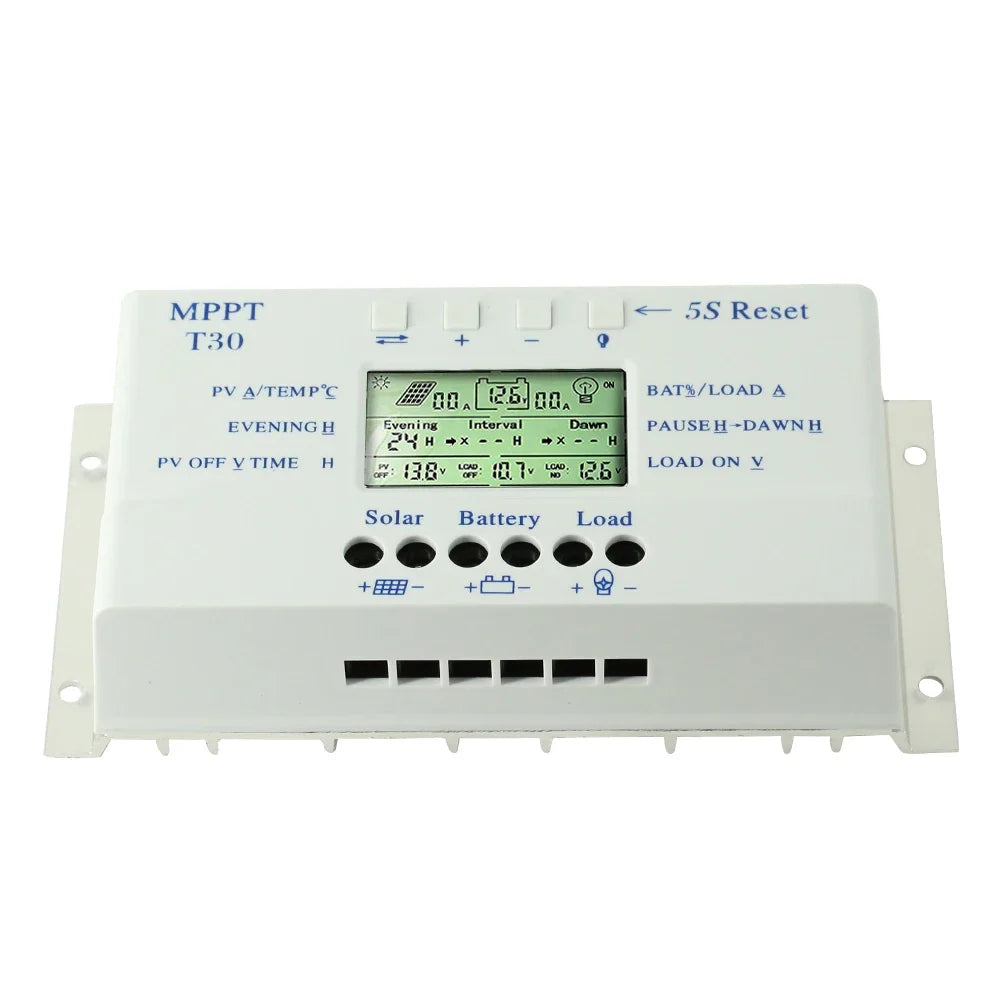

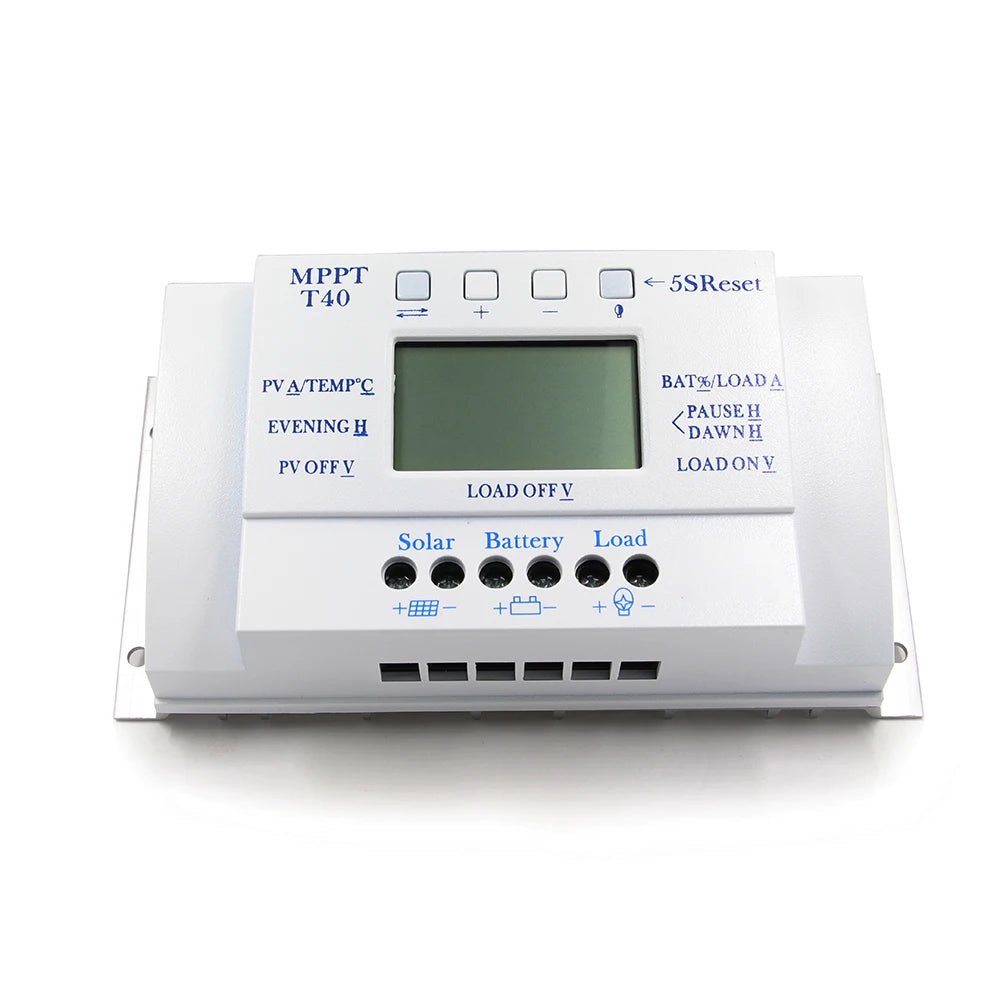

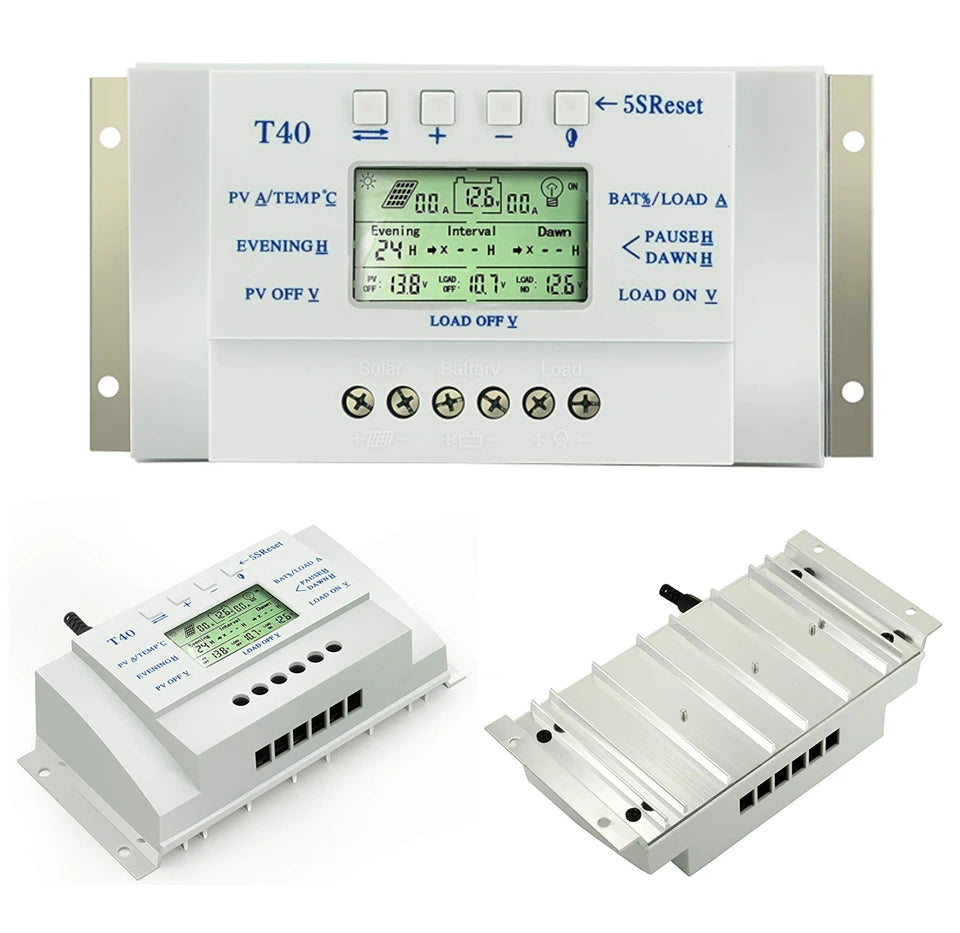

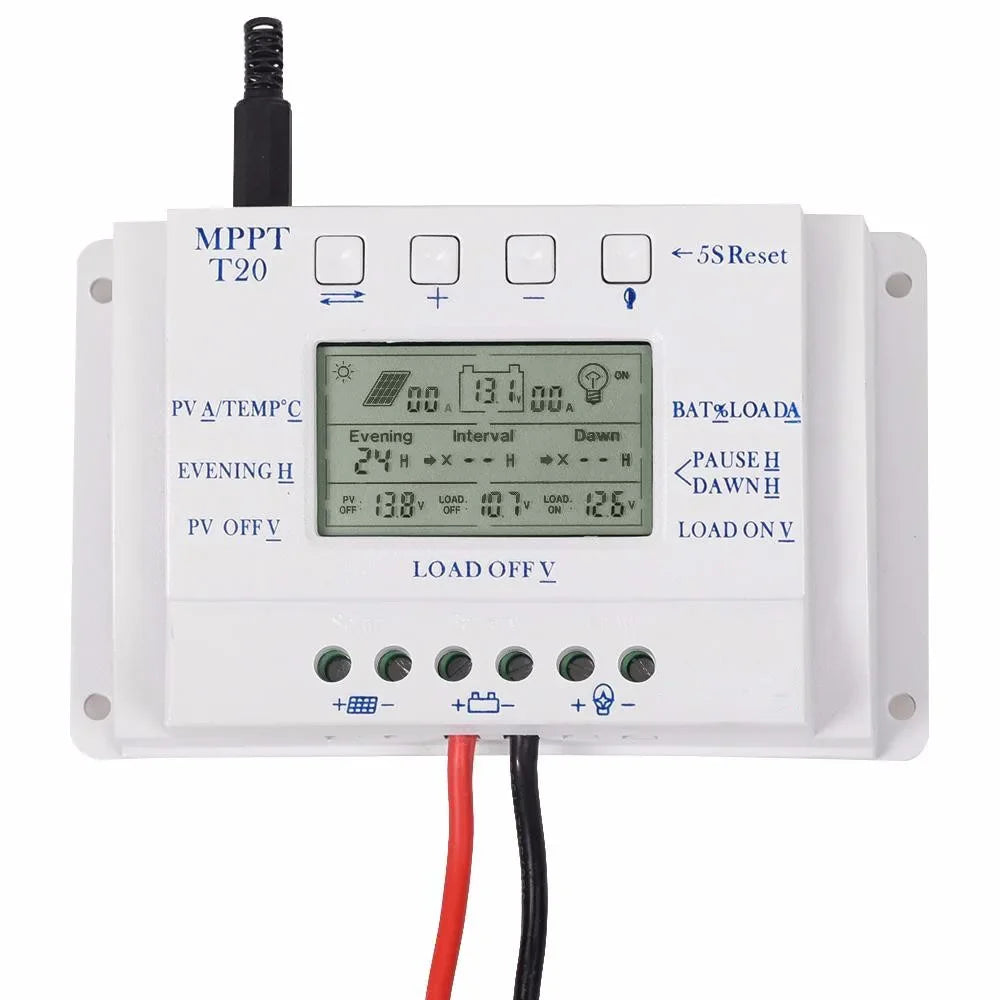

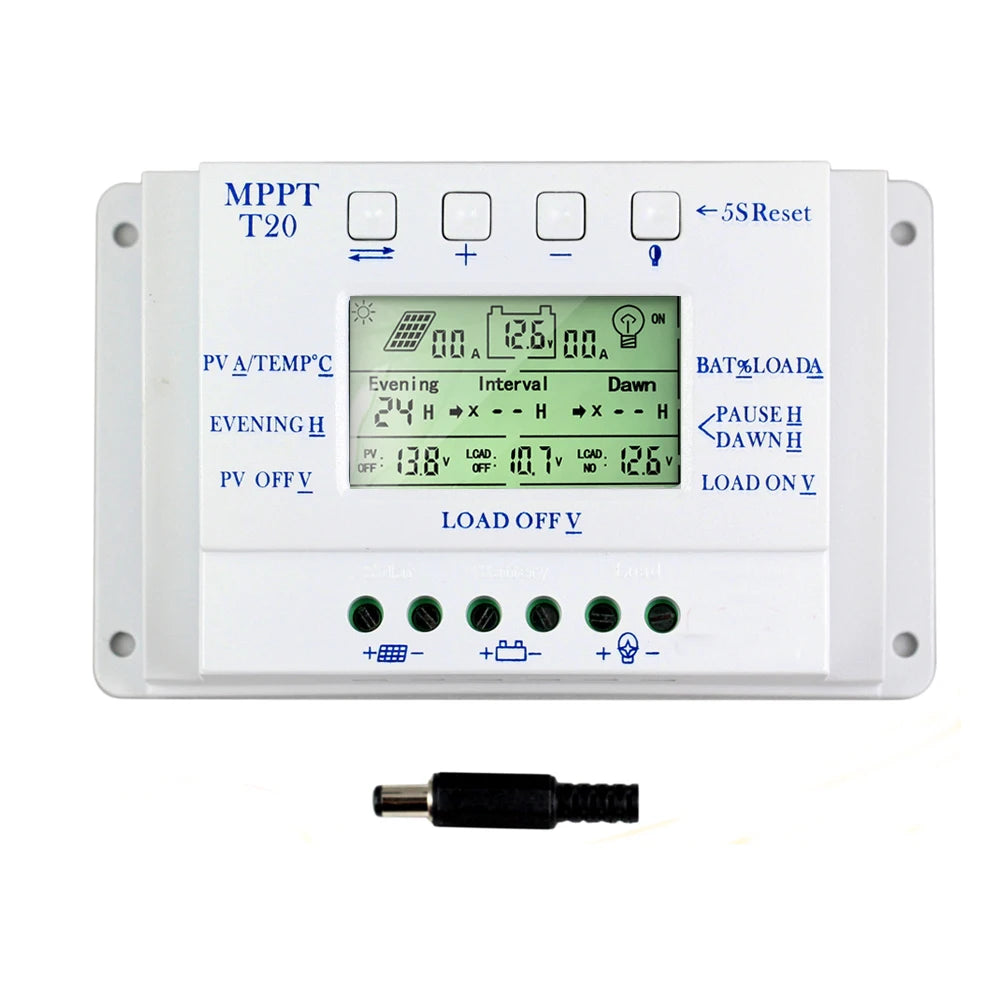

T20 T30 T40 Solar Charge Controller Dual timer

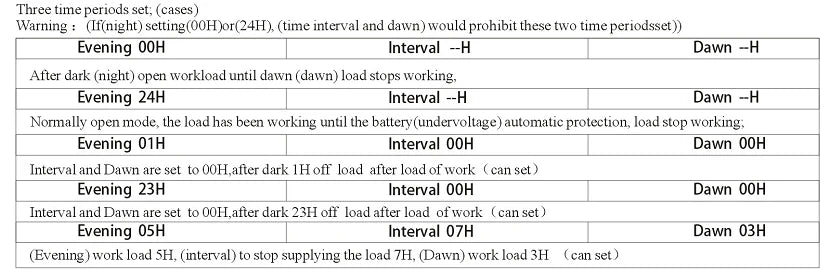

This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time

Note:

It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT

Parameters/Model	T10	T20	T30	T40
Maximum Power Current	10A	20A	30A	40A
Installation Lin mm2	4mm2	8mm2	10mm2	12mm2
Installation Line(AWG)	10 (AWG)	8(AWG)	7(AWG)	6(AWG)
Battery capacity configuration	100AH	200AH	300AH	400AH
Dimensions	143×89×46 mm		1879761 mm
System load loss	≤13mA
Loop Buck	≤100mV
Battery float voltage	13.8V 12V system /27.6V 24V system
Battery under voltage) protection	10.6V 12V system /21.2V 24V system
Battery (under voltage) recovery voltage	12.6V 12V system /25.2V 24V system
Charge mode	Compatible MPPT+PWM
Operating Temperature	-10~60°C
Storage Temperature	-30~70°C
Humidity requirements	≤90%, No condensation
Temperature compensation	-4mV/Cell/°C
Temperature Probe (built components)	NTC 100K thermistats
Maximum open circuit voltage of the solar panel	18V-24V 12V system 36V-48V 24V system)
Solar panels maximum open circuit voltage (V)	≤48V
(Cases) 12V system standard configuration
The peak voltage of the solar cell panel	18V-25V	18V-25V	18V-25V	18V-25V
Peak power of solar cell panel	50W-130W	100W-260W	200W-380W	≤500W

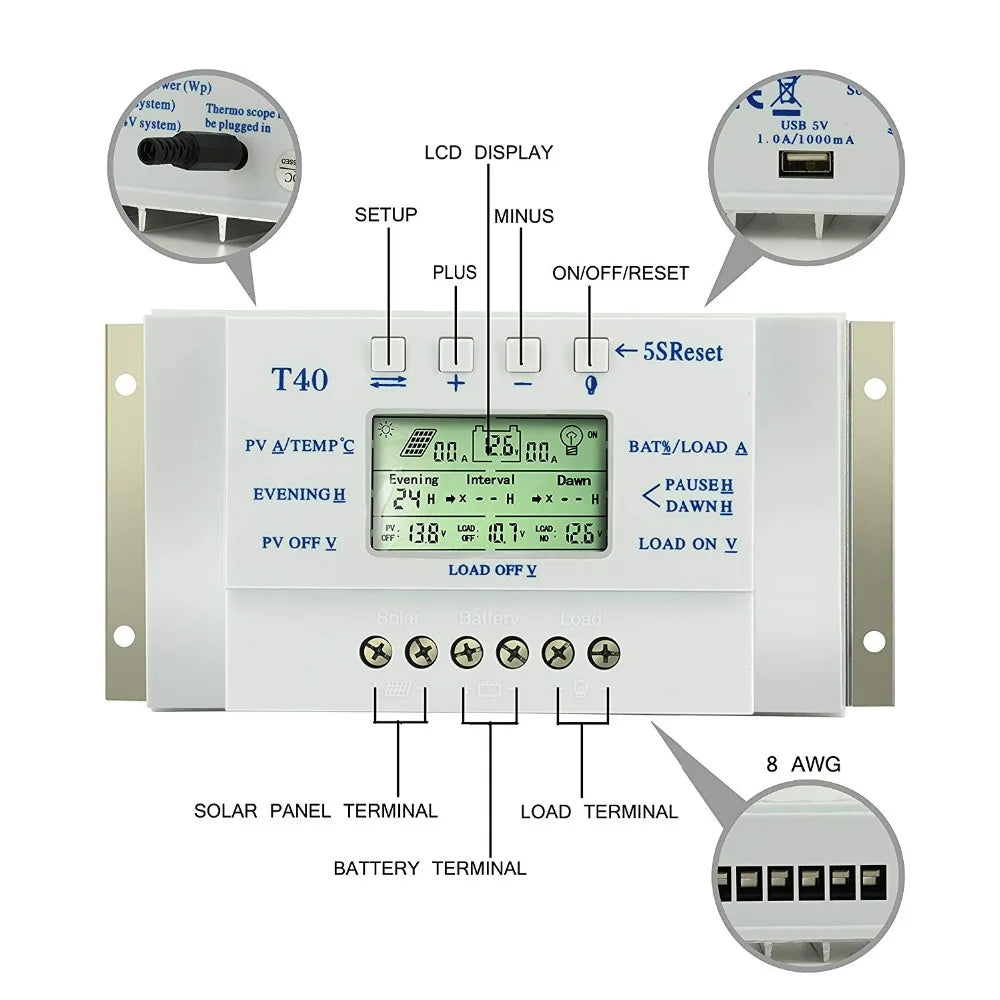

"T"series of an intelligent,multi-purpose solar charge controller

LCD screen display	Battery reverse discharge protection
Easy operation interface	Battery reverse polarity protection
MPPT+ PWM charging mode	Battery under voltage protection
Parameter user can reset Overload	Short-circuit protection
A key to restore the factory settings	USB 5V charging 500mA for mobile phone
A key to open and close the load	Automatic temperature compensation function
